A Tutorial on the Frontend Options



Introduction

This article is a guide to the configuration Options for the frontend views.  The options are available in both jDownloads 3.9 and V4 but presently images have been taken from v3.9.  There are notes on all the available options.
It does not cover:
A. creating or editing from the frontend.
B. The Content Plugin
The frontend Options are grouped into 15 sections and this tutorial article has notes on all the option in each section.  With one exception, the settings in a section are separate from those in other section.  Throughout each option such as 'Activate Maintenance' is in bold and underlined.

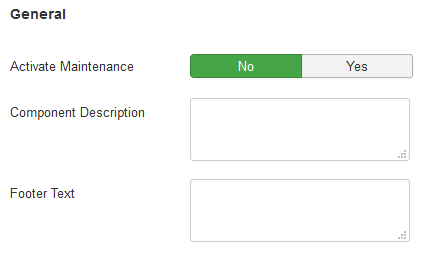

General Options

Activate Maintenance
The default setting for this option is No.

If it is set to Yes then another option, 'Notice for Visitors' appears as illustrated on the far right.  This has HTML code that will display a suitable message such as shown.  Obviously you may change the code as required to suit your site.

No part of the Download area is displayed in the front end to users except to logged in Super Users who are always able to view the Download area in the frontend.

The backend is of course unaffected. However there is a message that is on the jD Control Panel as illustrated opposite.

01 general0101 general0201 general03V4 Offine msg backend0
Component Description and Footer Text options
Suitable descriptive text may be put in the 'Component Description' and 'Footer Text' options if required.
01 general0401 general05

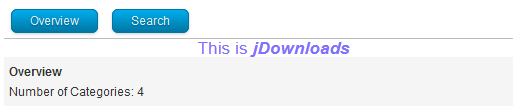

Both Options may include HTML code. For example the Component Description shown was generated with the code shown above.
If you are using multiple languages then you need to include a description for each of the languages.  For example if you wished to use the phrase 'This is jDownloads' for English, French and German then for example insert
{en-GB}This is jDownloads{/en-GB}  {fr-FR}C'est jDownloads{/fr-FR}  {de-DE}Dies ist jDownloads{/de-DE}

URL Routing

This will be a future addition. It is not yet implemented.02 URLrouting01

Multilingual Associations


The default setting is No.

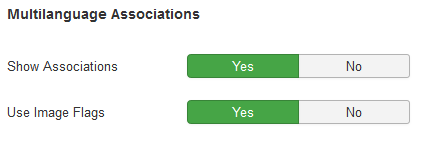

If set to 'Yes',an additonal option, 'Use Image Flags' is shown.

03 multilang0103 multilang02
Selecting Yes in the 'Use Image Flags' shows a message and the flags, for example 03 multilang03.
Selecting No shows a message and the approprate language codes such as 03 multilang04.
Clicking on a flag or a language code will take you to the Download Details view of the associated Download.

CSS


The Default setting is Yes. This will then use the standard jDownloads CSS.

If you select No then the option 'Your CSS file' appears.  Specify the name of the file, for example 'mystyling.css'
04 css0104 css02
You then need to ensure that your CSS file is placed in /components/com_jdownloads/assets/css/

But please note in this case we cannot give any css or layout support.

Items per Page

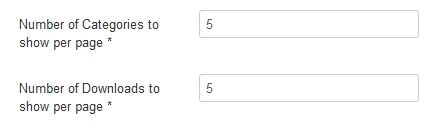

These three options control how many items of each type are shown on a page.  When there are more items of the particular type on a page then a navigation bar will be shown.
For example 05 itemsperPage03 would be shown for Categories.

Note that the Option 'Number of Subcategories rows to show per page' relates to the number of rows, not items.  This is only significant if you are using the layout 'Multi-Column Subcategories Layout'.

Sometimes the 'Number of Subcategories rows to show per page' option is not visible.

This is because both options 'Show navigation for Subcategories' in the Navigation section below is set to No.

05 itemsperPage0105 itemsperPage02

Navigation

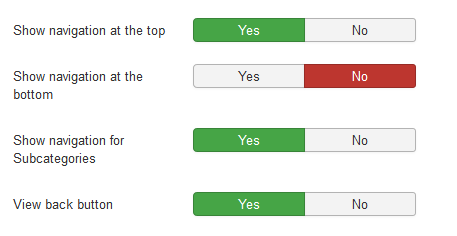

There are four options in the Navigation section as illustrated opposite.

The three types of navigation 'bar' are shown below.  The first two are the Categories and Downloads types; they may be selected to appear at either the top or bottom or both as set by options 'Show navigation at top' and 'Show navigation at the botom'.
05 itemsperPage0305 itemsperPage05
The third type is the subcategories navigation.  This will only appear when option 'Show navigation for Subcategories' is set to Yes.  Also it only appears at the top part of the view.
05 itemsperPage04

When set to Yes the option 'View back button' shows a 06 navigation06 button in the Footer part of the view.














06 navigation0106 navigation0206 navigation0306 navigation05


Default Sort Order

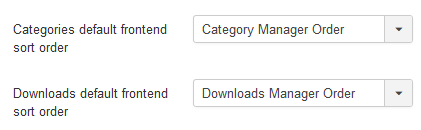

The two options 'Categories default frontend sort order' and 'Downloads default frontend sort order' specify the initial way Categories or Downloads will be shown in the frontend.

There are three options for the sequence of Categories and ten for Downloads.

Categories and Downloads may also be sorted in the backend. So the choices Category Manager Order and Downloads Manager Order will show the same sequence as currently used in the backend.

See also the Header Sort Options section below.
07 sortorder0107 sortorder0207 sortorder03

Header Sort Options

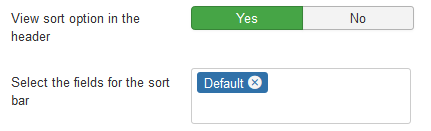

The default setting for option 'View sort option in the header' is Yes.

This shows option 'Select the fields for the sort bar'  which allows allows adding various sort methods by clicking in the box to reveal the dropdown list of available types.  Each type is selected one at a time.

The result is a sort bar in the header section such as shown below.
.08 headersort05
08 headersort0108 headersort02

Download Sequence

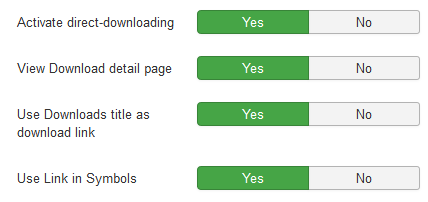

The default settings for the four options  'Activate direct downloading', 'View Download detail page' ,  'Use Downloads title as download link' and 'Use Link in Symbols' are shown opposite.

The two options 'Use Download Title as download link'  and 'Use Link in Symbols' simply control whether the symbol or the title have an active link.

If both links are active then they will have the same link.  This is not WCAG compliant.
09 download01
The addition of 'Use Link in Symbols', which also applies to Category symbols, has been introduced to improve Accessiblility criteria (WCAG).

What happens when you click on either the Download title or the Download symbol or the Download button 09 download02 is a combination of the 'Activate direct downloading' and 'View Download detail page' is shown in the table below.

The upper half of the table shows the results of clicking on either the symbol link or the title when active. The lower part shows the result of clicking on the Download button if it is being shown.

Whilst there are 4 combinations of these two setting, the actual resultant view also depends on whether the Download requires the user to agree a license, or to give a password or to respond to a Captcha.

For a license to be operative, it has to be selected from the Download setting 'License' pulldown and the  'Confirm License' has to be Yes. (If Confirm License is not set it is treated as if there were no license)

Additionally the resultant view also depends on whether the Download has a downloadable file or is a simple Download without a file.
Direct Downloading


View
Download Detail

Click on Symbol or Title when active
Download with File   Download with no File
No License* With License* No License* With License*
Yes Yes Details Summary Details Details
Yes No Direct Summary Details Details
No Yes Details Details Details Details
No No Summary Summary Details Details
License* implies user needs to agree a license, give a password or answer a Captcha
Direct
Downloading
View
Download Detail
Click on Download Button
Download with File Download with no File
No License* With License* No License* With License*
Yes Yes Direct Summary Not shown Not shown
Yes No Direct Summary Not shown Not shown
No Yes Summary Summary Not shown Not shown
No No Summary Summary Not shown Not shown

The only exception is if you have a Single Download menu item. This type of menu item takes you directly to a Download Details view.  The Sumary view will be shown if it has a file and a license.

NOTE:  Option 'File Types in Browser' in Global Settings options lists those extensions which will add target="_blank" to the link so that it opens in a new tab/window.  The option is called 'File Types in Browser' (opens in new window/tab).

Category Listbox



If the 'Display Category list box in Header' is yes then a pulldown listbox such as 10 catlistbox03 is shown.  This will have a list of all the categories, subcategories and so on to the category level as defined in option 'Set Max Levels'.  If this option is left at the default value zero then all categories are included.


The other three options:, 'Also include link for All Downloads', 'Also include link for Top Downloads' and 'Also include link for Latest Downloads' provide additional entries in the pulldown list.


If the 'Display list box in Header' is set to No then all four of the other options are no longer visible.

For the Use Cache option see the noes below.

10 catlistbox01

Use Cache option

If you have a large number of categories and sub-categories, say the total is 50 or more, then it recommended that this option is set to Yes.

This will speed up the loading of subsequent jDownloads web pages. Useful especially if a higher number of categories must be loaded into the selection box and the category structure does not change very often.

This setting is not related to the Joomla Cache option.


Category Header Info

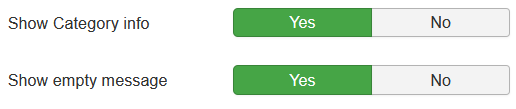

If option 'Show Category Info' is set to Yes then the category information is repeated again under the navigation bar.  As the name of the category is already visible in the navigation bar, this is not always welcome. But if you want to show the category description then you must set this to Yes.


Note: This option only works for layouts that have a single column.

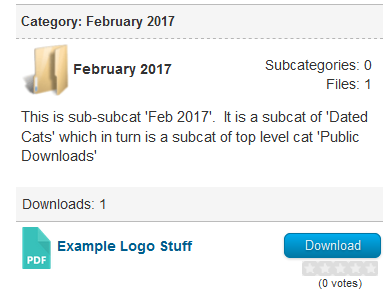

An example of a category description is shown opposite.





11 catheader0311 show-cat-info-02

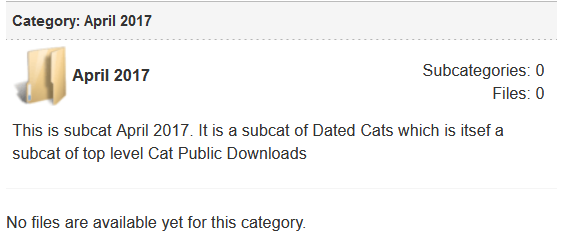

If the option 'Show empty message' is set to Yes then empty categories and subcategories show a message such as: "No Downloads are available yet for this category".

The message shown is set in the 'COM_JDOWNLOADS_FRONTEND_NOFILES' entry of the current front end language file.  That is for example if current language is English then it is in file 'en-GB.com_jdownloads.ini' .

11 catheader02A

Other Options

This is a miscellany of various options that do not fit into any more specific section! So they are discussed individually. The mage below shows all of the options, which are discused individually below the image.
12 OtherOpts01

Use Caching

If Yes, the results of some database queries are cached.

This may cause jDownloads to load web pages faster. This is especially useful for large sites that have a significantly high number of categories and downloads may cause the loading to take a little longer.

This setting is not related to the Joomla Cache option.

Remove empty label & HTML tags

This is best illustrated with an example.
Suppose the Remove Empty Label  Fields option is set at its default value 'No'.  The part of an information display could look like the view opposite.  Note that the Version has no value.12 OtherOpts02
If now the Remove Empty Label Fields Option is set to Yes then the view becomes as below but there are two obvious empty gaps.12 OtherOpts03

But suppose the option 'Remove empty HTML tags' is also set to Yes.  The view now becomes as opposite where the empty gaps have also been removed.12 OtherOpts04

Use jDownloads Lightbox

The next option is 'Use jDownloads Lightbox'.  Sometimes you may have already installed a lightbox plugin. If that is the case then you can set this option to No.  It is suggested that you test with and without the jDownloads lightbox function enabled to be certain!

Support for Joomla Content Plugins

The option 'Activate support for all Joomla content plugins' is important. When set to Yes then you can use placeholder variables from other installed Joomla plugins in the jDownloads generated script, for example .
However because not all content plugins are 'equal' it is essential to test if the plugin you are using causes broken or blank pages in jDownloads.

Use Real Name

The option Use real user name allows choice of using either the Name (if Yes) or the Login Name (if No) in jDownloads.
'

Show Shortened Filename

Show a Shortened Filename sets the maximum number of characters used when displaying the filename. The actual filename is of course unchanged.  Set to zero to disable this feature.  A filename such as 'Sample_Valve Box_Order_Form.pdf ' would appear as 'Sampl...orm.pdf' when the selected length is 15.  The objective is to show the start and end of the filename, including the extension.  Note that lengths of 5 and 10 are not effective - they are scheduled to be removed in a future update.

Truncate Download Description

Show a truncated Download Description allows you to automatically truncate the view length of the short descriptions to the maximum number of characters as specified here. This is used in the Download list view in the frontend. The Short Description itself is not truncated, only the view length. Leave zero to disable this feature.

Redirect after downloading

Redirect after downloadingWhen you want the user to be redirected to a category after the start of downloading, you must specify the waiting time before redirection in seconds.  Setting the value to zero (0) turns the function off.
Note: This only works when the Global Settings option 'Send Downloads over PHP Script?' is set to: Yes.

Tabs in Details view

The default setting for option 'Use tabs in the Download Details view' is No.

If you use the pulldown  and select either Sliders or Tabs then three further options are available to add additional sliders or tabs. You also need to select a Downloads Details layout that supports tabs.

These extra options: 'First custom tab title', 'Second custom tab title' and 'Third custom tab title' will show anothe tab or slider with the given name in the front end Download Details view.


13 TabsInDetail0113 TabsInDetail0213 TabsInDetail03

Example Description and Data tab views are shown opposite.



V4 description tabV4 detail data tab


Examples of a Media tab and a Download tab are shown opposite.
V4 Media tabV4 download tab

Ratings

The default setting for option 'Activate ratings' is No.

If Yes is selected then another option 'Only Registered users may rate' becomes available.  This is usually desirable as it enables jDownloads to restrict users to vote just once for each Download.

When activated each Download will now have a box with five empty stars 14 ratings05
After voting it will look like14 ratings06. The user will briefly see a message thanking them for voting.



The header of the Download will now look like the image opposite.


14 ratings0214 ratings0214 ratings03
If the same user attempts to vote on the same Download again then the user will be informed that they have already voted.

Note that all non registered users are treated as a single user. As a result if option 'Only Registered users may rate' is set to No then once a non registered user has voted for a Download then no other non registed user may vote for that Download.

Comments

The default setting for 'Support JComments' is No.  If you select Yes another option 'View number of comments' appears.

Because comments are supported using the extension JComments the set up, whilst simple, has several steps.

These are given in another article.
Use the link JComments article (opens in a new tab/window) for details of using JComents.

Note that Comments may also be added by using the paid extension Komento.
For details click on Komento article. (opens in a new tab/window)
15 comments0115 comments02
ColinM May 2020, updated October 2021,  May 2023, July 2023, October 2023
